80t Capacity Electronic Truck Scale with Platform Size 3x16m

Home Weighing Scale Truck Scale 80t Capacity Electronic Truck Scale with Platform Size 3x16m
[caption id="attachment_1049" align="alignright" width="400"]keli load cells load cells for truck scale[/caption] [caption id="attachment_1050" align="alignright" width="400"]truck scale junction box stainless steel junction box[/caption] [caption id="attachment_1051" align="alignright" width="400"]weighing indicator keli weighing indicator for truck scale[/caption]

80t Capacity Electronic Truck Scale with Platform Size 3x16m

* Weighbridges: used for legal-for-trade freight weighing of road vehicles or for loading goods on the scales.(e.g. Bulk cargo)

* Some typical applications: inbound / outbound weighing in manufacturing plants and transport companies, or comfortable material-flow management systems, e.g. in waste management facilities.

* The combination of weighing indicators or PC solutions produces user-friendly, high-performance scale systems, which can be easily connected to ERP-systems.

* Truck scales are pit mounted (embedded in the roadway), or above-ground scales.

Truck Scale2020-08-28a70 Tags: truck scale, weighbridge

Description



Steel Weighbridge

* width*length: 3*16M– 3sections 80t

* Material:steel

* Beam Thickness: Standard U shape beam

* Top Steel: checker Plate

* Beam Height: 300mm

* Painting: Anti rust and anti-corrosion painting

* Accuracy: OIML III

* Capacity: 80Tons

* Weight :7000kg

* Power: 100V~240V

* Working Temperature: -40℃~75℃

* Safe overload:120% FS

* Limit overload:150% FS

* Foundation:Shallow / No Foundation Pit

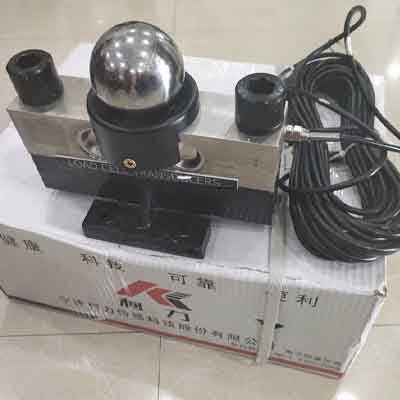

KeLi Load Cell

* Load cell number: 8pcs

* Manufacture: KeLi brand load cell

* Rate Load: 30t

* Communication BPS: 9600bps

* Creep(30min) : ±0.02%FS

* Temperature effect: ±0.02%FS/10℃

* Operating Temperature Range: -30℃-70℃

* Storage Temperature Range : -60℃-80℃

* Environmental Protection: IP68

* Excitation Protection: 9-12VDC

* Power Dissipation: 350(12V)MW

* Excitation Voltage: RS485

* Transmitting Distance: 50-1200M

* Cells Network Operation: ≤16个

* Cells Lightning Protection: yes

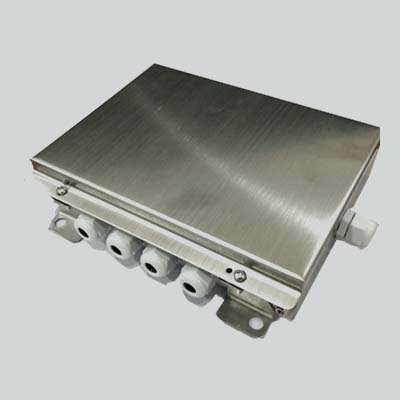

Stainless Steel Junction Box

* Resistance protection device

* Waterproof and anti-surge with welding

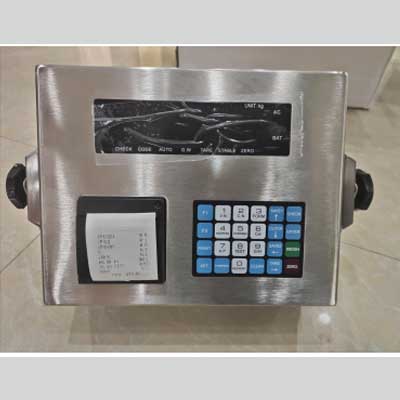

Weighing Indicator

* Model:KeliD2008

* Connection mode:RS232 mode

* Communication distance:About 1000 meters.

* Then the number of sensors:1~16 pcs

* Sensor power supply :DC 10V, 0.8A (Max)

* Display range:-325000-325000 (d=10)

* With printer



High-density Screws

* To connect weigh bridge parts and connect parts



Signal Cable

* 30m

* The use of 6-core double shielded signal line, made of copper, with transmission speed, anti-interference, moisture, corrosion, life of up to 30 years.
