Beam Load Cell with Capacity 5~50t for Truck Scale

Home Weighing Scale Beam Load Cell with Capacity 5~50t for Truck Scale

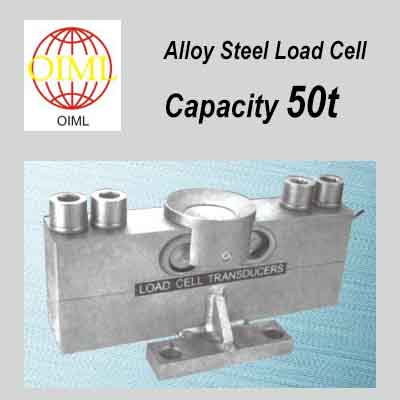

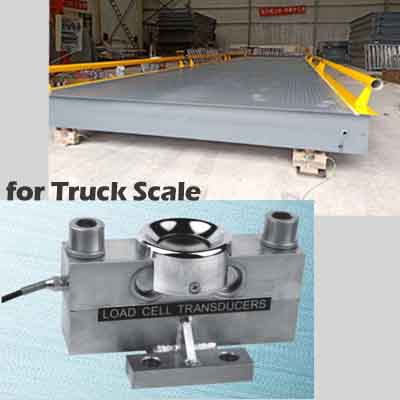

[caption id="attachment_1102" align="alignright" width="400"]QS 50T load cell Beam load cell with capacity 50t[/caption] [caption id="attachment_1103" align="alignright" width="400"]Load cell application alloy steel load cell for truck scale weighing[/caption]

Beam Load Cell with Capacity 5~50t for Truck Scale

* Capacity: 5t to 50t

* OIML C3 certificate

* Alloy Steel

* Truck scale

* Railway scale

* Blending scale and all kinds of weighing apparatus

Weighing Scale, Weighing Accessories2021-01-14a70 Tags: truck scale, load cell weighing module

Description

Features:

●Capacity: 5~50t

●Steel ball loading, strong restoration ability

●Easy complete installation, high weighing accuracy

●OIML C3 certificate

●Alloy Steel

Applications:

●Truck scale

●Railway scale

●Blending scale and all kinds of weighing apparatus

Specifications:

Rated capacity: 5ton to 50ton Operating temperature range: -30 to +70℃
Rated output:2.0±0.002mv/v Maximum safe overload;150% OF R.C
Combined error:±0.03% F.S Ultimate safe overload;200% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation;10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation;15V DC
Hysteresis error:±0.02% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 702±3Ω; 703±5Ω(cable≥15m);
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steel;
Compensated temperature range: -10 to +40℃ Cable length: 5.2m(5t);8m(10t); 10m(15t); 10/12m(20t);12/16m(25t~50t),diameter 6mm

Outline Dimensons:

Rated capacity(t) L L1 L2 L3 W W1 W2 H H1 H2 C1 C2 C3
5 224 125 80 45 135 100 10 168.8 11 20 Φ68 Φ30 Φ18
10,15,20,25,30 240 125 80 45 135 100 10 223.5 11 20 Φ85~88 Φ30 Φ18
40 240 125 80 45 135 100 10 239.5 11 20 Φ88 Φ30 Φ18
50 340 160 124 45 160 124 10 260 11 20 Φ98 Φ40 Φ22

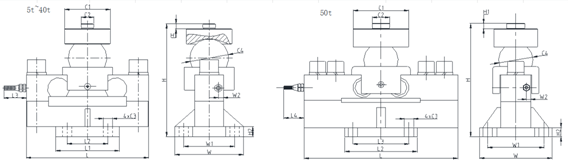

QS load cell dimensions

Wiring Diagram and Structure of Load Cell:

beam load cell

beam load cell wiring diagram
