[caption id="attachment_648" align="alignnone" width="400"]
spiral powder batching control system[/caption]
[caption id="attachment_649" align="alignnone" width="400"]
spiral powder batching control system[/caption]
[caption id="attachment_650" align="alignnone" width="400"]

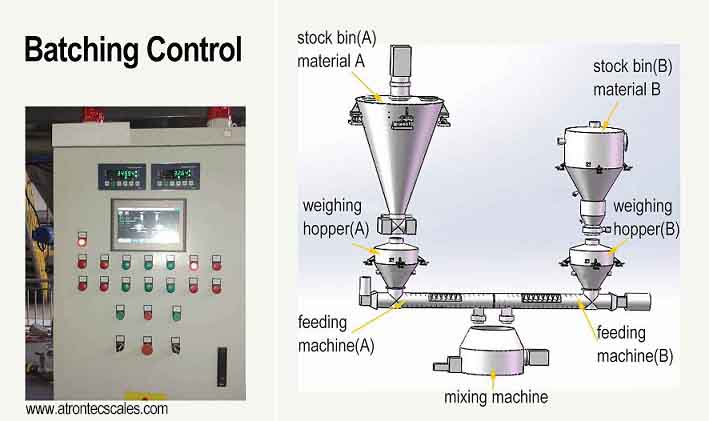

spiral powder batching control system[/caption]Batching System
* Stock bin A: feed material A to weighing hopper A
* Weighing hopper A: weigh material A,control feeding and batching through Spiral feeder
* Stock bin B: feed material B to weighing hopper B
* Weighing hopper B: weigh material B,control feeding and batching through Spiral feeder
* Mixing machine: mix material A and material B after batching
Electric Control Cabinet
– Functions of ID511 Weighing Controller
* One controller detects material A level by weighing
* Two controllers control material dosing via feeder machine
* Batching accuracy: +/-40g within 1000kg
– Functions of Touch Screen:
* Display the entire working station
* Set target weight
* Diagnose whole system
