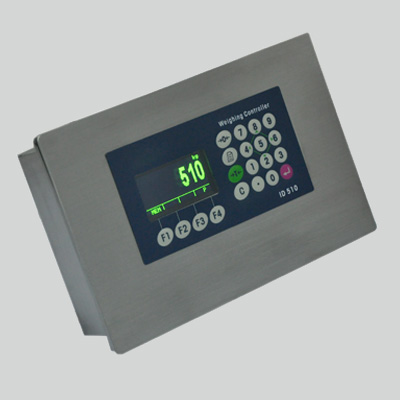

industrial process weighing controller with harsh housing[/caption]
[caption id="attachment_356" align="alignnone" width="400"]

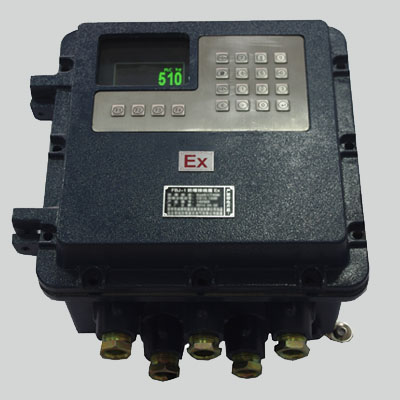

industrial process weighing controller for chemical weighing system[/caption]
Primary Applications:
* Standard weighing
* Field bus communication
* Target control
* Checking weighing
* Filling control
* Packaging control
* Batching control
Download: ID510 Weighing Controller
– ID510 is a high precision Industrial Process Weighing Controller. This weighing controller has a variety of field-bus communication with high reliability which is typical for complicated and harsh environment.
– Therefore ID510 can be used in chemical and hazardous industries for weighing purpose,packaging engineering,batching control system,filling system solution,etc…
Features of ID510 Process Weighing Controller:
* High accuracy,high anti-vibration
* 200Hz A/D sample speed, 200Hz target compare speed
* 150,000d and 6000e(approved)
* RS232,RS485,100M LAN
* Green OLED, 128×64 dot matrix graph display
* Report Weight and rate at the same time from PROFIBUS-DP,MODBUS_RTU,4-20MA, MODBUS-TCP
* No-Testing Weight Calibration is available
* Zone：Zone 2, 22 and Div. 2 location
* Kinds of application Controlling PAC
* Exd Class: Ex d ib[ia II C Ga] IIB T6 Gb/DIP A21 TA,T6
Options:
* 8 Inputs /12 Outputs (OC and Relay)
* POFIBUS DP
* 4-20mA Analog Output(16-bit DAC)
* 100M LAN(TCP,UDP,MODBUS-TCP)
| Specifications of ID510 Industrial Weighing Controller | |
| Accuracy | |
| Accuracy Class | III |
| CMC Approval | 150,000d, 6000e(Approved) |
| Display | 128×64 green OLED dot matrix graph display |
| Update Speed | 60ms |
| Status Display | Tare,Net,Motion,Zero,Unit,PLC |
| Key | 20 keys(F key,Tare/Clear,Zero,Print,10 digit keys） |
| Power On/Off | None |
| Keypad Lock | Can be locked via local input or remote communication(MODBUS-RTU,MODBUS-TCP,PROFIBUS-DP) |
| ADC | |
| Type | 24-bit |
| Speed | 200 Hz |
| Resolution | 0.06uV/d |
| Resolution Approved | 1uV/e（legal for trade） |
| Input | 0.1mV to 19Mv |
| Accuracy | 150,000d |
| Scale Basic Functionality | |
| Calibration | 2-point with testing weight or no testing(CalFree) |
| Filter | 5-step |
| Scale Process | Tare,Zero,Auto Zero,Motion, Auto Tare, Auto Clear,Auto Print |
| Inputs | Option 8 Inputs,Can be assigned remote inputs for remote host(PLC or DCS) |
| Outputs | Option 12 Outputs,Can be assigned remote outputs for remote host(PLC or DCS) |
| Others | Display gross weight, net weight, rate |
| Linearity and Stability | |
| In-linearity & TC | ≤0.0015% FS；≤5ppm/℃ |
| Load Cell | |
| Exciting Voltage | 5V DC, max 150mA |
| Load Cell Number | Max 10 x 350Ω or 24 x 1100Ω |
| Connect Type | 4- wired or 6-wired , Cable:274mR/m2 |
| Communication I/F | |
| Serial Port | 2 ports:COM1-RS232, COM2-RS232/485 |
| MODBUS-RTU,Continuous output weight,Demand input & output | |
| PROFINET | Connect to Siemens PLC,report integer weight data & floating weight data |
| EtherNET/IP | Connect to Rockwall PLC,report integer weight data & floating weight data |
| MODBUS-RTU | Support, Integer & Floating weight data |
| LAN | 100M,TCP,UDP,MODBUS-TCP |
| Analog Output | two chanel 4-20mA output, 16-bit DAC |
| PROFIBUS-DP | Integer and floating data output,100Hz updating speed |
| 3GSD inside,totally compatible to PANTHER & IND131/331 | |
| CC-LINK | for Mitsubishi PLC,totally compatible to PANTHER & IND131/331 |
| Application PAC | |
| Basic Weighing | 2-speed target control:Filling & dumping control(Over/Under/Over) |
| Batching PAC | Up to 8 materials, Sequence Filling/ Random Filling |
| Checking Weighing PAC | Both photoelectricity and weight input are available for checking weighing,Support classify output:up to 8 ranges |
| Bagging PAC | Weigh-Hopper Bagging/No-Weigh-Hopper Bagging/In-continuous-weighing totalization Bagging |
| Filling PAC | No-Gun-Control Filling / Gun-Control Filling |
| Working Condition | |
| Temperature | -10℃~40℃, 95％ RH |
| Power Supply | 86~264VAC, 12W |
| IP Protection | Panel-IP65, Harsh–IP69K, Exd–IP65 |
