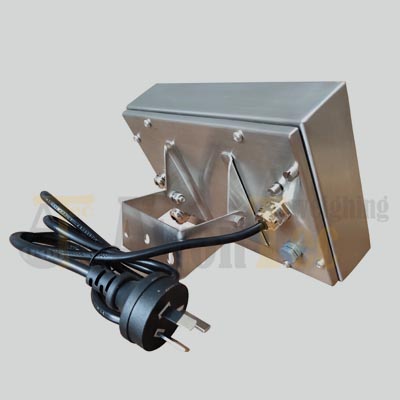

[caption id="attachment_875" align="alignnone" width="400"]
stainless steel housing weighing indicator[/caption]

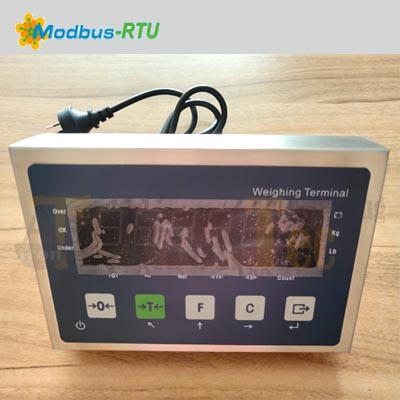

[caption id="attachment_870" align="alignnone" width="400"]
platform scale indicator with LED Display[/caption]

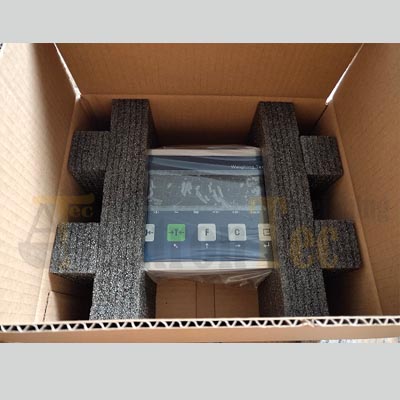

[caption id="attachment_871" align="alignnone" width="400"]
stainless steel housing weighing indicator[/caption]
* ID511L is an industry weighing indicator for platform scale, high accuracy and fast stability.
* SS harsh enclosure with IP66 protection
* 6 bits 1” high green or red LED display and 12 status lights
Applications:
* Plat Form Scale
* Counting Scale
* Over/Under/Ok Classify Scale
* Animal Weighing Scale
Product Features:
* 200,000 display division
* Two display range / two increment size
* RS232/485 (standard)
* 1″ display, Red LED
* MODBUS_RTU
* Basic Functionality: ZERO、TARE、CLEAR and PRINT.
* Auto Tare, Auto Clear and Auto Print
* Print and Totalization
* X10/Over/Under/OK/Count/Animal Weighing/Unit Switch.
* Auto save battery and battery indicating
* Auto Power OFF
* Over/Under/OK alarm output with relay output
* External Input to Zero, Tare, Clear or Print.
* Power Input：100~264VAC, ≤ 0.1A
NI-MH battery gru, GP 7.2 VDC 3800mAh
Options:
* 1 Inputs /3 Outputs(Relay)
* RTC(Real Timing Clock)
| Specifications and Parameters | |
| Accuracy | |
| Accuracy Class | III |
| EU Approval | 200,000 Display Division |
| Display Range | Two display range / Two increment size |
| Display & Keypad | |
| Display | 6 bits 1” high Red LED display and 12 status lights |
| Update Speed | 100ms |
| Status Display | Over/Under/OK, CountKG/LB, Center of Zero, Net/Gross, Motion, Battery |
| Key | 5 function keys（Tare, Clear，Zero，Function key,Print） |
| Power On/Off | Support |
| ADC | |
| Type | 24-bit |
| Speed | 100 Hz |
| Resolution | 0.05uV/d |
| Resolution Approved | 1uV/vsi（legal for trade） |
| Input | 0.1mV to 19Mv |
| Accuracy | 200,000d |
| Linearity and Stability | |
| In-linearity & TC | ≤0.0015% FS；≤5ppm/℃ |
| Load Cell | |
| Exciting Voltage | 5V DC, max 150mA |
| Load Cell Number | Max 4 x 350Ω |
| Connect Type | 4- wired or 6-wired , Cable:274mR/m2 |
| Scale Basic Functionality | |
| Calibration | 2-point or 3- point |
| Filter | 3-step |
| Scale Process | Tare，Zero，Auto Zero，Motion, Auto Tare, Auto Clear,Auto Print and Print Totalization |
| Inputs | Option 1 Inputs for Zero, Tare, Clear or Print |
| Outputs | Option 3 Relay Output for Under/Ok/Over Alarm |
| Application | |
| Basic Weighting | Tare ,Zero ,Print, Auto Tare, Auto Clear and Auto Print, Unit switch |
| Classify | Over/Under/OK alarm output with relay output |
| Counting | Supported |
| Print and Totalization | Supported |
| Animal Weighing | Supported |
| Communication I/F | ||
| Serial Port | COM1-RS232/485 | |
| Continuous Output | Supported | |
| MODBUS-RTU | Report Weight, Remote Zero, Tare, Clear | |
| Housing | ||
| Harsh | IP66, Round housing bracket or Wall housing bracket | |
| Working Condition | ||
| Temperature | -10℃~40℃ ，95％ RH | |
| Power Supply | 110VAC ~ 220VAC，12W | |
