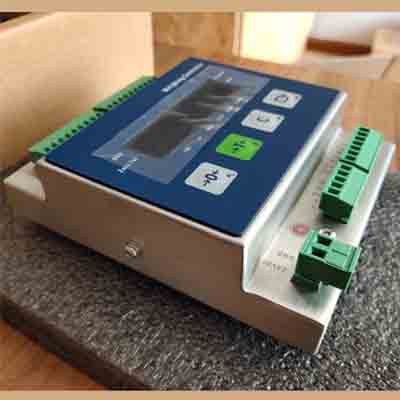

industrial weighing process controller for industrial weighing system[/caption]
[caption id="attachment_850" align="alignnone" width="400"]

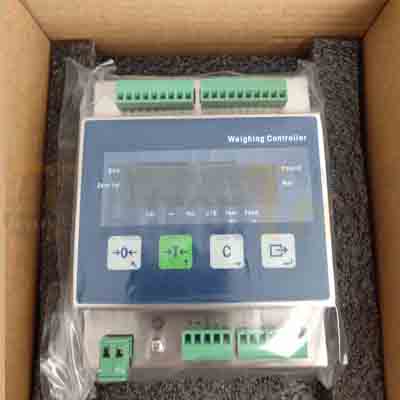

weight indicator for process control[/caption]
[caption id="attachment_851" align="alignnone" width="400"]
weight indicator for process control[/caption]
Primary Applications
* Setting target control which can be extensively used in different industrial control system
* Supply checkweigher solutions in pharmaceutical, food, chemical industry and other industrial production line
* Tension testing purpose is supported
* Apply to automatic rating packing controller in grain,chemical industry,food,building material industry,etc.
Download: ID551 Weighing Controller
ID551 Industrial Process Weighing Controller features high precision,high anti-vibration,as well as high reliability. This powerful weighing controller designed to meet complex needs and harsh environment in industrial weighing control process. It is typically used in weighing transmission,target setting control,and other industrial control processes.
Product Features:
* 5-step filter,high anti-vibration
* High accuracy, typical for weighing purpose, batching control, filling process.
* 200Hz A/D sample speed,200 Hz target compare speed
* 6-bit 0.28” red LED display and 10 status lights.
* Standard: RS232/485 Port
* Standard with 8 IN / 8 Output(OC)
* Standard: Report Weight via MODBUS-RTU
* Target Control Basic PAC
* Checking Weight PAC
* DIN Rail Housing
| Specifications and Parameters | |
| Accuracy | |
| Accuracy Class | III |
| EU Approval | 100,000 Display Division, CMC 6000e |
| Display & Keypad | |
| Display | 6 bits 7-segment red LED display, 0.28” high |
| Update Speed | 250ms |
| Status Display | Gross，Net，Motion，Center of Zero |
| Key | 4 function keys（Tare, Clear，Zero，Print） |
| ADC | |
| Type | 24-bit |
| Speed | 200 Hz |
| Resolution | 0.06uV/d |
| Resolution Approved | 1uV/vsi（legal for trade） |
| Input | 0.1mV to 19mV |
| Accuracy | 100,000d |
| Linearity and Stability | |
| In-linearity & TC | ≤0.0015% FS；≤5ppm/℃ |
| Load Cell | |
| Exciting Voltage | 5V DC, max 150mA |
| Load Cell Number | Max 4 x 350Ω |
| Connect Type | 4- wired or 6-wired , Cable:274mR/m2 |
| Scale Basic Functionality | |
| Calibration | 2-point with testing weight |
| Filter | 5-step |
| Scale Process | Tare, Zero, Auto Zero, Motion |
| Inputs | Option 8 Inputs, Can be assigned remote inputs for remote host(PLC or DCS) |
| Outputs | Option 8 Outputs, Can be assigned remote outputs for remote host(PLC or DCS) |
| Target Control | |
| OVER/UNDER/OK | None |
| Zero Tolerance | Support |
| Target Control | Sequence Control(with Start & Abort command) |
| Checking Weigh | Eye-In trigger checking & Weight trigger checking |
| Communication I/F | |
| Serial Port | 1 ports: RS232/485 |
| Continuous Output | 10ms ~ 20ms, (100~50 Hz) |
| MODBUS-RTU | Support, Integer & Floating data format |
| Analog Output | None |
| Housing | DIN Rail |
| Power Supply | 24VDC |
| Working Condition | |
| Temperature | -10℃~40℃, 95％ RH |
| Power Supply | 24VDC, 6W |
