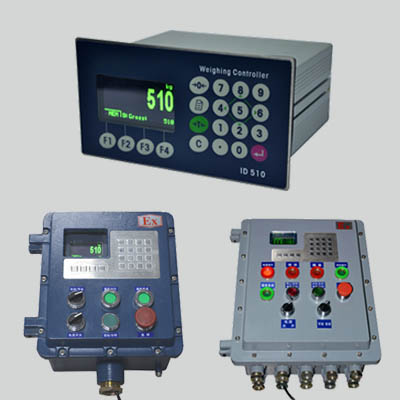

[caption id="attachment_639" align="alignnone" width="400"]
weighing controller for industrial filling control system[/caption]

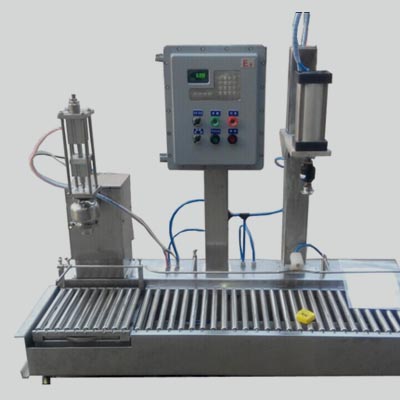

[caption id="attachment_640" align="alignnone" width="400"]
weighing controller for filling process control[/caption]

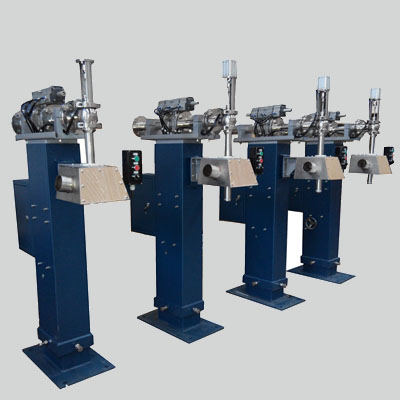

[caption id="attachment_641" align="alignnone" width="400"]
explosion-proof weighing controller for filling solutions[/caption]
Performance of Weighing Controller:
* Greatly enhance weighing,batching,filling,packing control system
* Increase material transfer speed and whole control process
* Reduce manufacturing waste and improve production capacity as well as quality
* Achieve max. profits and competitiveness
Our professional Weighing Controllers are typically designed for Industrial Checkweigher, Filling Process control, Batching Control system, Packing Process Control and so on. These Process Weighing Controller can be widely used in grain, food, pharmaceutical, chemical industry and other industrial production line.
Performance of Weighing Controller:
* Greatly enhance weighing,batching,filling,packing control system
* Increase material transfer speed and whole control process
* Reduce manufacturing waste and improve production capacity as well as quality
* Achieve max. profits and competitiveness
Filling Application:
* Process weighing controller with EtherNet/IP
* Serve for liquid filling,gas filling and powder filling,etc.
* Apply to Explosion-proof environment or other industrial areas
* Computer Software can manage whole filling system
* Auto print labels via optional label printer
ID510 Weighing Controller applied in Liquid Filling & Gas Filling solutions:
* 150,000 display division, CMC 6000e
* 200Hz ADC speed
* Green OLED dot matrix graph display
* RS232,RS232/485,100M LAN
* MODBUS-RTU,MODBUS-TCP are supported
* Multiple calibration modes: weight calibration, calibration free of weight, communication remote calibration
* Filling modes:
– Barrel positioning without lifting and auto control filling process
– Barrel positioning without lifting,external starts and controls filling
– Filling control with lifting,filling above liquid surface
– Filling control with lifting,filling under the liquid
* Screw capping control after filling
* 10 groups of recipe are supported
* Login via password menu management
* Computer software is supplied
* Options are supported,
– 8 inputs/12 OC outputs
– 8 inputs/12 relay outputs
– PROFIBUS-DP output(for Siemens PLC)
– 1*4-20mA analog output, 2*4-20mA analog output
– 100M LAN port(MODBUS-TCP)
– PROFINET(for Siemens PLC)
– EtherNet/IP(Rockwell PLC)
– CC-Link(Mitsubishi PLC)
* Housing: Panel with IP65, Harsh with IP68, Aluminum EXD(Ex d ib[ia II C Ga] IIB T6 Gb/DIP A21 TA,T6)
