Description

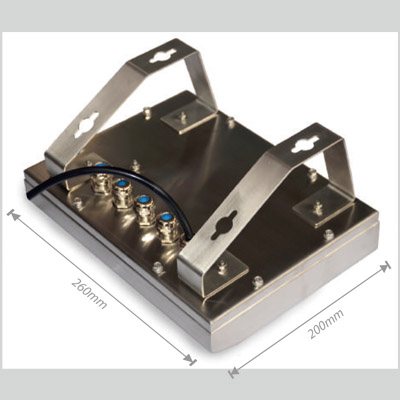

Features of K3000 Weighbridge Terminal for analog scale or digital scale:

* SUS304 stainless steel housing,bracket and PG glands

* IP65 protection

* 100~240V AC power supply directly

* Easy to operate with big LCD display

* User-friendly operation interface

* Anti-vibration better fro oil tank truck,etc.

* Multi-interface: RS232,RS485,Ethernet,etc.

* Super anti-interference technology:

– All communication interface isolated design

– Anti-surge design

* K3000 Analog version: drive up to 16*350 Ohm load cells

* K3000D Digital version: working with Moorange/HBM/AWT/ZEMIC etc.

(all rights of above mentioned brands belong to those companies who registered and owned)

* High accuracy up to 10,000e

* Max. display resolution up to 60,000

Specifications of K3000 Weighbridge Terminal for analog scale or digital scale:

* Power: 100~240V, 50/60Hz

* Excitation voltage: DC10V 500mA, up to 16*350 Ohm load cells

* A/D rate: 120 times/second

* Display resolution: 1/3,000~1/60,000

* Protection: IP65

* Display: Dot-Matrix LCD 240*128mm

* Units: kg/t

* Communication: Continuous/Print/Modbus-RTU/Modbus-TCP

* Operating temperature: -10℃~40℃

* Storage temperature: -25℃~55℃

* Weight: 3.2kg
