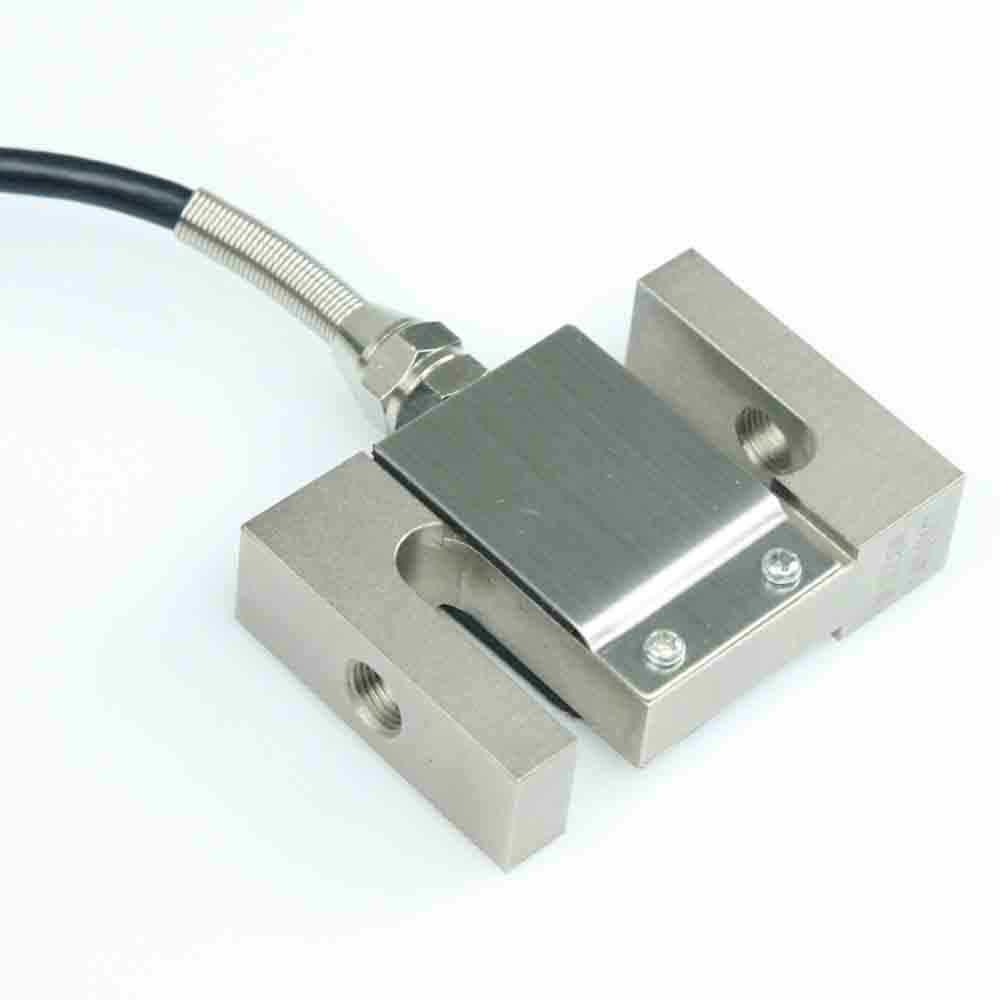

S-Type Alloy Steel Load Cell for Crane Scale or Ingredients Weighing

Home Weighing Scale S-Type Alloy Steel Load Cell for Crane Scale or Ingredients Weighing

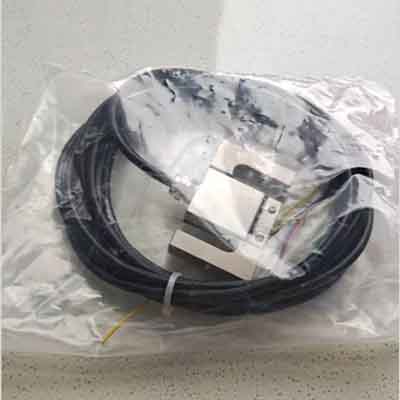

[caption id="attachment_1108" align="alignright" width="400"]S-type load cell TSC load cell for crane scales,mechanical scale and batching weighing control,etc.[/caption] [caption id="attachment_1109" align="alignright" width="400"]Alloy steel load cell load cell of alloy steel plated with nickel[/caption] [caption id="attachment_1110" align="alignright" width="400"]Load cell wiring Schematic of TSC load cell[/caption]

S-Type Alloy Steel Load Cell for Crane Scale or Ingredients Weighing

* Alloy steel plated with nickel

* Capacity: 50kg,100kg,200kg,300kg,500kg

* Suitable for crane scales,mechanical scales and ingredients weighing control,etc.

* IP rating: IP65

* Cable length: 5m

Weighing Scale, Weighing Accessories2021-03-01a70 Tags: load cell, load cell weighing module

Description

Features:

* Tight construction

* High accuracy

* High stability

* Alloy steel plated with nickel

* Suitable for crane scales,mechanical scales and ingredients weighing control,etc.

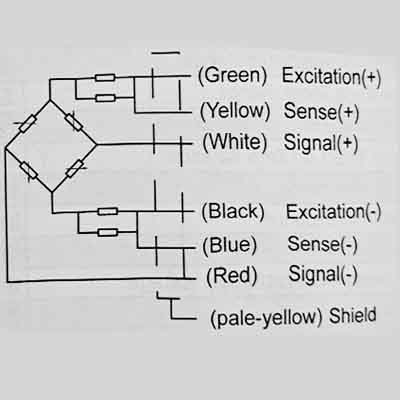

Schematic:

* Green: +input

* Black: -input

* White: +output

* Red: -output

* Yellow: +sense

* Blue: -sense



Specifications:

* Rated load: 50kg,100kg,200kg,300kg,500kg

* Sensitivity: 2±0.002 mV/V

* Non-repeatability: ≤ 0.01%R.C.

* Hysteresis: ≤ 0.02%R.C.

* Non-linearity: ≤ 0.02%R.C.

* Creep(in 30min): ≤ 0.02%R.C.

* Zero balance: ≤ 1%rR.C.

* Temp. compendated range:  -10ºC~+40ºC

* Operating temp. range:  -20ºC~+60ºC

* Temp. coefficient on sensitivity:  ≤ 0.002% Load/ºC

* Temp. efficient on zero balance:  ≤0.002%R.C./ºC

* Input Impedance: 381±4 Ω

* Onput Impedance: 350±1 Ω

* Insulation resistance:    ≥5000 MΩ(50V DC)

* Recommended excitation voltage:   5~15V(DC/AC)

* Max. excit. voltage: 20V(DC/AC)

* Safe overload: 150%R.C.

* Ultimated overload: 300%R.C.

* IP rating: IP65

* Cable length: 5m

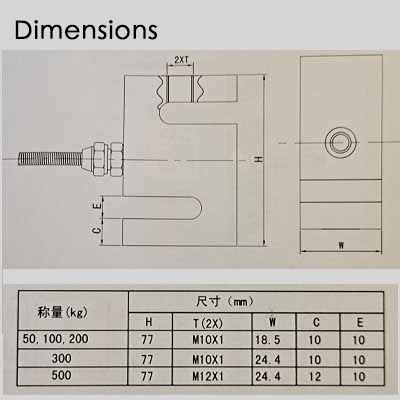

size of load cell
