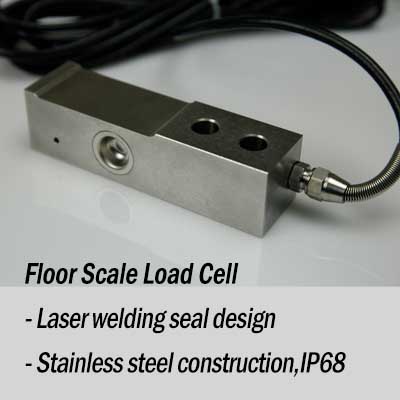

[caption id="attachment_1133" align="alignright" width="400"] weighing transducer

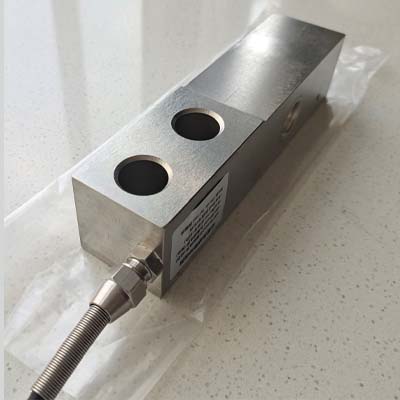

stainless steel load cell for floor scales[/caption] [caption id="attachment_1134" align="alignright" width="400"] load cell module

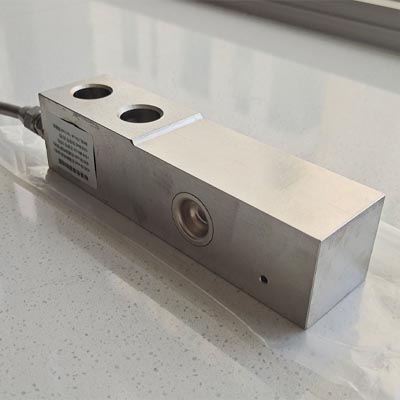

floor scale load cell with capacity 5t[/caption] [caption id="attachment_1135" align="alignright" width="400"]

stainless steel load cell with 5t capacity for floor scales[/caption]

Stainless Steel Load Cell with IP68,Weighing Transducer with Laser Welded Seal

* Stainless steel construction

* Laser welding hermetically sealed design

* Protection class IP68

* Suitable for floor scales,weighing control in chemical/food/medical industry,etc.

Features:

* Stainless steel construction

* Laser welding hermetically sealed design

* Protection class IP68

* High accuracy

* High stability

* Tight construction

* Suitable for floor scales,weighing control in chemical/food/medical industry,etc.

Schematic Diagram

– Red: +input

– Black: -input

– Green: +output

– White: -output

stainless steel load cell with IP68

Specifications:

Capacity		0.5t,1t,2t,3t,5t
Sensitivity	mV/V	2±0.002
Non-repeatability	%R.C.	≤0.01
Hysteresis	%R.C.	≤0.02
Non-linearity	%R.C.	≤0.02
Creep	%R.C.	≤0.02
Zero Balance	%R.C.	≤0.1
Temp. Compensated Range	℃	-10~+40
Operating Temp. Range	℃	-20~+60
Temp. Coefficient on Sensitivity	%Load/℃	≤0.002
Temp. Effect on Zero Balance	%R.C./℃	≤0.02
Input Impedance	Ω	381±4
Output Impedance	Ω	350±1
Insulation Resistance	MΩ	≥5000(50V DC)
Recommended Excitation Voltage	V(DC/AC)	5~15
Max. Excit. Voltage	V(DC/AC)	20
Safe Overload	%R.C.	150
Ultimated Overload	%R.C.	300
IP Rating		IP68
Cable Length		5m
