3*18m A2 Analog Truck Scale with Capacity 60T

Home Weighing Scale Truck Scale 3*18m A2 Analog Truck Scale with Capacity 60T
[caption id="attachment_1056" align="alignright" width="400"]Vehicle scales 3*18m standard truck scales with 60T capacity[/caption] [caption id="attachment_1058" align="alignright" width="400"]60t capacity weighbridge 10mm checker plater standard truck scale[/caption] [caption id="attachment_1059" align="alignright" width="400"]60T steel weighbridge middle dissected structue truck scale[/caption]

3*18m A2 Analog Truck Scale with Capacity 60T



* 3*18m, 10mm checker plate, middle dissected structure, 3 sections 6pcs.

*  6pcs U shape beams:4pcs in 5mm thick 2pcs in 4mm thick

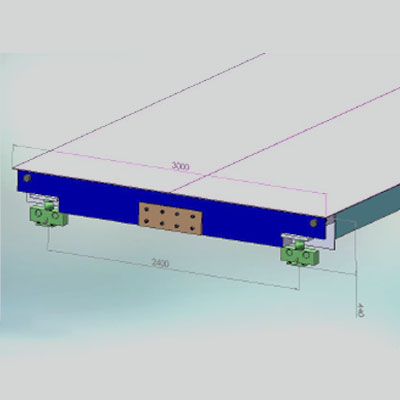

* Mounting height is 440mm

* Load cell access:from side to access to load cells

Truck Scale, Weighing Scale2020-09-05a70 Tags: truck scale, weighbridge

Description

Features of Truck Scale:

* 3*18m, 60t

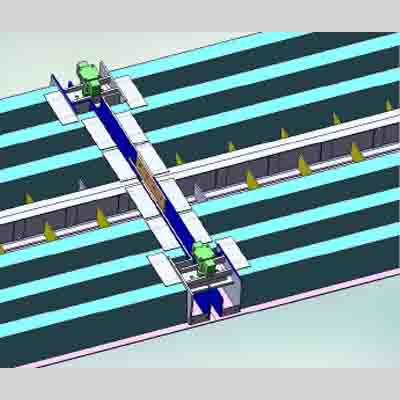

* 10mm checker plate, middle dissected structure, 3 sections 6pcs.

* 6pcs U shape beams: 4pcs in 5mm thick, 2pcs in 4mm thick

* Mounting height is 440mm

* Load cell access:from side to access to load cells

* Double shear beam load cell or column load cell selectable

* Easy assembly and installation

* Pit and pitless mounted alternatively,and pitless mounted more often

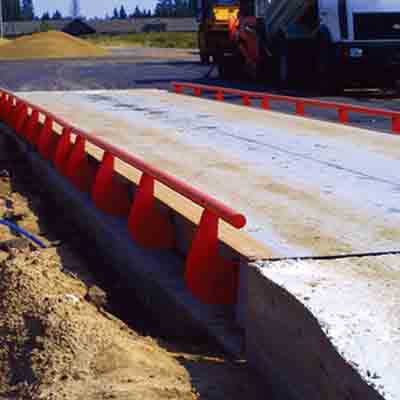

* Side rails optional to prevent trucks from slipping from the platform

* With all assembled screws and tools

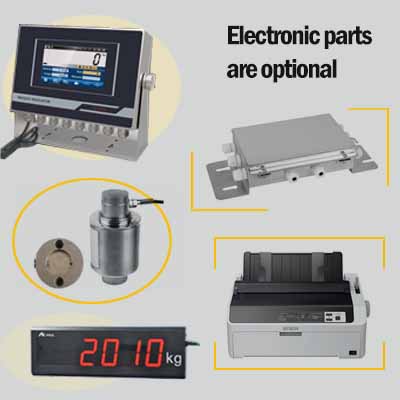

Electronic Parts for Truck Scale

* Stainless Steel Analog Load Cell

* Weighing Indicator both for analog and digital

* Stainless Steel Junction Box

* Remote display

* Epson printer

Optional electronic parts

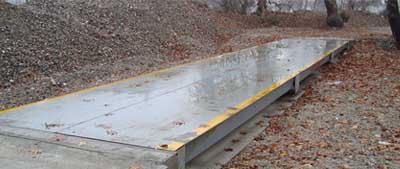

Truck Scale Picture

steel weighbridge
