Floor Scale Low Profile Carbon Steel Platform

Home Weighing Scale Floor Scale Platform Floor Scale Low Profile Carbon Steel Platform

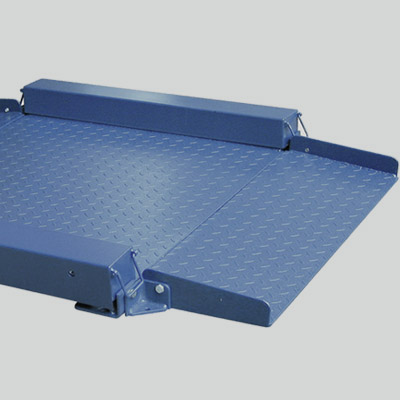

[caption id="attachment_399" align="alignnone" width="400"]ultra low profile floor scale platform floor scale ultra low-profile steel structure platform[/caption]

Floor Scale Low Profile Carbon Steel Platform

* Accuracy class: C3

* Scale overall height: 35mm~45mm

* Working temperature: platform and load cell -35°C~+65°C

* Relative humidity: less than 95%(need no condensation)

* IP: Load cell IP65

* Load cells: ZEMIC H8C



Download: PC series-carbon steel structural platform

Floor Scale Platform2017-07-28a70 Tags: Floor Scale Platform

Description

Features of Low Profile Carbon Steel Platform:

* Carbon steel construction, powder-coated surface, anti-skidding design

* Hermetically sealed alloy steel load cell

* Force transfer mechanism can be reset automatically

* The low overall height is 35mm~45mm, allows smooth driving via ramps

* Short distance ramp with 300mm



Specifications of Low Profile Carbon Steel Platform:

Model Dimensions (mm) Weight Range
300kg 600kg 1000kg 1500kg
PC0808 800×800 * * *
PC1010 1000×1000 * * * *
PC1212 1200×1200 * * * *
PC1515 1500×1500 * * *
  Verification division value 0.1kg 0.2kg 0.2kg 0.5kg
  Accuracy Level C3
  Working temperature platform & load cell:-35℃~ +65℃
  Relative humidity ≤95% (Need no condensation)
  IP Load cell IP65
  Load cells ZEMIC H8C

PC low-profile platform

Model L W H L1 W1 H1
PC0808-0.3 800 800 35 1416 1002 114
PC0808-0.6 800 800 35 1416 1002 114
PC0808-1.0 800 800 35 1416 1002 114
PC1010-0.3 1000 1000 35 1616 1202 114
PC1010-0.6 1000 1000 35 1616 1202 114
PC1010-1.0 1000 1000 35 1616 1202 114
PC1010-1.5 1000 1000 45 1616 1202 114
PC1212-0.3 1200 1200 45 1816 1402 114
PC1212-0.6 1200 1200 45 1816 1402 114
PC1212-1.0 1200 1200 45 1816 1402 114
PC1212-1.5 1200 1200 45 1816 1402 114
PC1515-0.6 1500 1500 45 2116 1702 114
PC1515-1.0 1500 1500 45 2116 1702 114
PC1515-1.5 1500 1500 45 2116 1702 114
