[caption id="attachment_1006" align="alignright" width="400"]

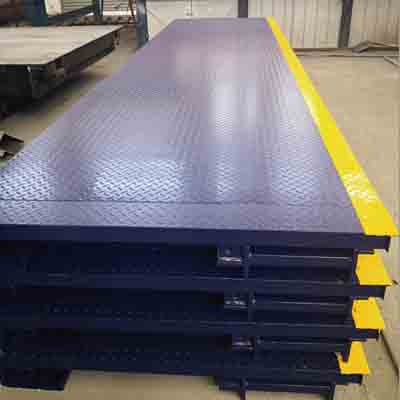

heavy-duty weighbridge with U-shaped steel[/caption]
[caption id="attachment_1007" align="alignright" width="400"]

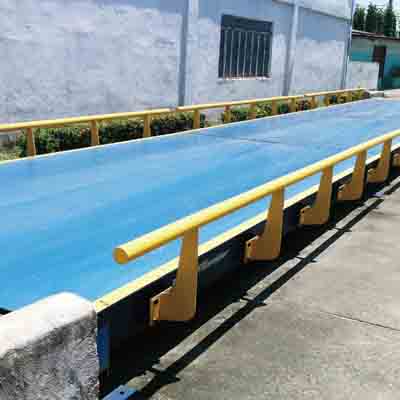

heavy-duty weighbridge[/caption]
[caption id="attachment_1008" align="alignright" width="400"]
heavy-duty weighbridge[/caption]* High quality steel, sturdy and durable;
* Capacity: 10t~200t;
* Accuracy: OIML III
* Provide multiple options(large screen,load cells,weighing indicators,junction box,printers) for various appliations;
* Working temperature: -30°C~+70°C;
* Power supply: 220VAC(-15%~+10%) 50HZ+/-2%
Body Characteristics:
* The height of the main beam is 360mm. Bending strength can be increased by 50%;
* Continuous welding makes the inner cavity of the weighing platform completely sealed and is not easy to rust;
* The weighing platform adopts U-shaped main beam, which effectively solves the measurement error caused by the bending of the weighing platform;
* Large-scale shot blasting equipment for overall rust removal, scale removal, improving the roughness of metal surfaces, and improving the adhesion of anti-rust paint
* Improve the corrosion resistance of the weighing platform and prolong the service life of the weighing platform
* Reduce the welding stress of the scale body. Through shot blasting, the welding stress can be effectively reduced by nearly 70%.
* The weighing platform has undergone full load loading and unloading experiments on a large-scale fatigue testing machine, and the weighing platform has no deformation;
heavy-duty weighbridge

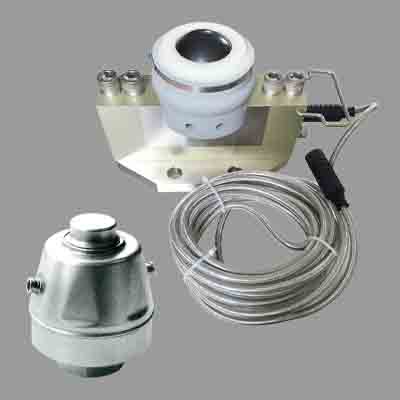

High Precision Load Cell
* High precision,high reliability and good stability;
* It adopts a bridge structure,which can be automatically reset and adjusted; It has good resistance to lateral forces and impact;
* Easy installation and good interchangeability;
* Using advanced A/D conversion technology and intelligent filtering and compensation algorithms,it can output a stable 1 million yards(with an internal resolution of 16 million yards);
* Adopt 4-wire RS485 transmission signal(6 lines with power supply), full-duplex transmission, faster speed and higher transmission reliability;
* Reliable data storage technology to ensure that module parameters are not lost;
* Has good electromagnetic compatibility performance and strong electrostatic protection ability;
* Low-functional design, only 11mA function, digital sensor power consumption is about 25mA. Can effectively reduce hear and extend transmission distance.
high precision load cell for truck scales
