[caption id="attachment_1150" align="alignright" width="400"]

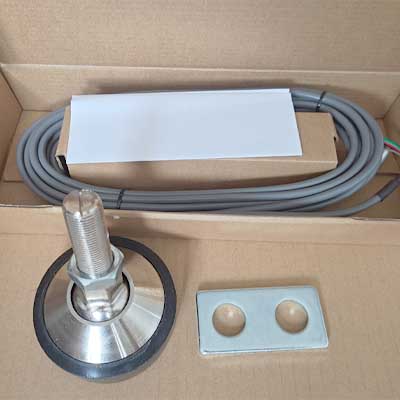

ZEMIC load cell with nickel plated alloy steel[/caption]
[caption id="attachment_1151" align="alignright" width="400"]

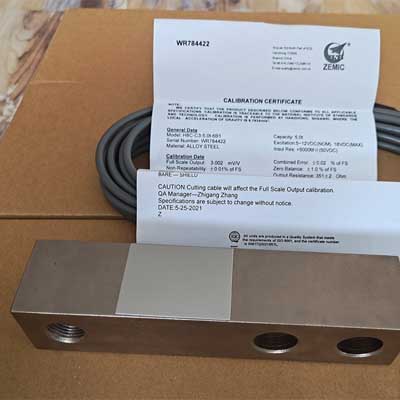

ZEMIC H8C load cell with capacity 5t[/caption]
[caption id="attachment_1152" align="alignright" width="400"]

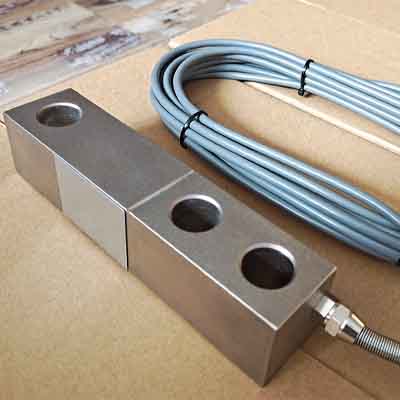

Shear beam alloy steel load cell with IP67[/caption]Features:
* Alloy steel,nickel plated
* IP67
* Shear beam
* Adhesive sealed
* Suitable for platform weighing
* High accuracy and reliability
Specifications:
| Maximum capacity(Emax) | 5T | |||
| Accuracy class | C3 | |||
| Approvals | OIML R60 C3 | |||
| Maximum number of load cell intervals(nLC) | 3000 | |||
| Ratio of minimum LC Verification interval Y=Emax/Vmin | 10000 | |||
| Combined error | %FS | ±0.020 | ||
| Creep | %FS/30min | ±0.016 | ||
| Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
| Temperature effect on zero | %FS/10℃ | ±0.015 | ||
| Output sensitivity(=FS) | mV/V | 3.0±0.003 2.0±0.002 | ||
| Input resistance | Ω | 350±3.5 | ||
| Output resistance | Ω | 350±3.5 | ||
| Insulation resistance | MΩ | ≥5000(50VDC) | ||
| Zero balance | %FS | ±1.0 | ||
| Compensated temperature | ℃ | -10~+40 | ||
| Operating temperature | ℃ | -35~+70 | ||
| Excitation,recommended voltage | V | 5~12(DC) | ||
| Excitation maximum | V | 18(DC) | ||
| Safe overload | %FS | 150 | ||
| Ultimate overload | %FS | 300 | ||
| Recommended torque on fixation | N.m | M12:100, M18:200, M24:700 | ||
| Ingress protection(according to EN 60529) | IP67 | |||
