[caption id="attachment_1119" align="alignright" width="400"]

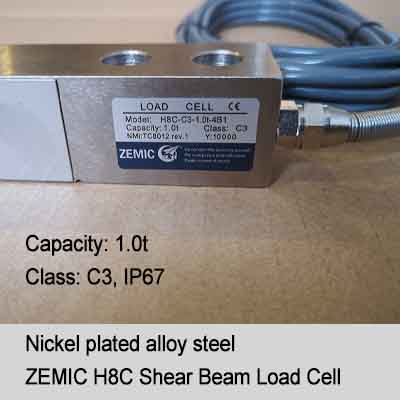

ZEMIC shear beam weighing transducer[/caption]
[caption id="attachment_1120" align="alignright" width="400"]

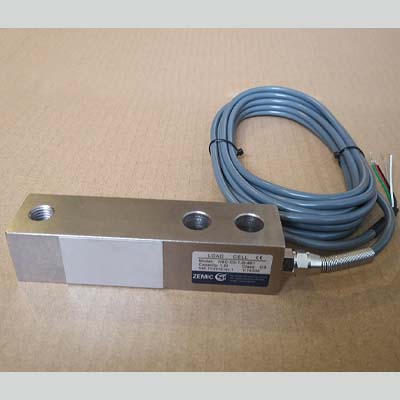

Capacity 1ton floor scale load cell with IP67[/caption]
[caption id="attachment_1121" align="alignright" width="400"]
floor scale load cell with IP67[/caption]
* Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
* Adhesive sealed
* Suitable platform weighing, bed weighing, etc.
* High accuracy
* High reliability
* Current calibrated (sc-option)
Features:
* Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
* Adhesive sealed
* Suitable platform weighing, bed weighing, etc.
* High accuracy
* High reliability
* Current calibrated (sc-option)

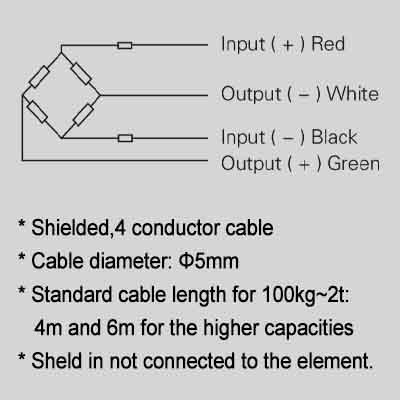

Wiring:
Specifications:
| Maximum capacity(Emax) | t | 0.5/1/2/2.5/3/4/5/6/7.5 | ||||
| klb | 1/1.5/2/2.5/3/4/5/7.5/10/20 | |||||
| Accuracy class | C3 | C4 | C5 | A5M | B10M | |
| Approvals | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | III 5000 Multiple | III L 10000 Multiple | |
| Maximum number of load cell intervals(nLC) | 3000 | 4000 | 5000 | 5000 | 10000 | |
| Ratio of minimum LC verification interval Y=Emax/Vmin | 10000 | 14000 | 18000 | 15000 | 10000 | |
| Combined error | %FS | ±0.020 | ±0.018 | ±0.010 | ±0.026 | ±0.050 |
| Creep | %FS/30min | ±0.016 | ±0.012 | ±0.010 | ±0.017 | ±0.040 |
| Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ±0.009 | ±0.008 | ±0.013 | ±0.040 |
| Temperature effect on zero | %FS/10℃ | ±0.015 | ±0.010 | ±0.007 | ±0.014 | ±0.020 |
| Output sensitivity(=FS) | mV/V | 3±0.003 2.0±0.002 | ||||
| Input resistance | Ω | 350±3.5 | ||||
| Onput resistance | Ω | 350±3.5 | ||||
| Insulation resistance | MΩ | ≥5000(50VDC) | ||||
| Zero balance | %FS | ±1.0 | ||||
| Compensated temperature | ℃ | -10~+40 | ||||
| Operating temperature | ℃ | -35~+70 | ||||
| Excitation,recommended voltage | V | 5~12(DC) | ||||
| Excitation maximum | V | 18(DC) | ||||
| Safe overload | %FS | 150 | ||||
| Ultimate overload | %FS | 300 | ||||
| Recommended torque on fixation | N.m | M12: 100; M18: 200; M24: 700 | ||||
| Ingress protection(according to EN 60529) | IP67 | |||||
| ATEX classification(optional) | operating temperature: -20℃~+40℃ | |||||
| II1G Ex ia II1C T4 | II1D Ex iaD20 T73℃ | II3G Ex nL II C T4 | ||||
| “S1” output sensitivity is 2.0±0.002MV/V | ||||||
